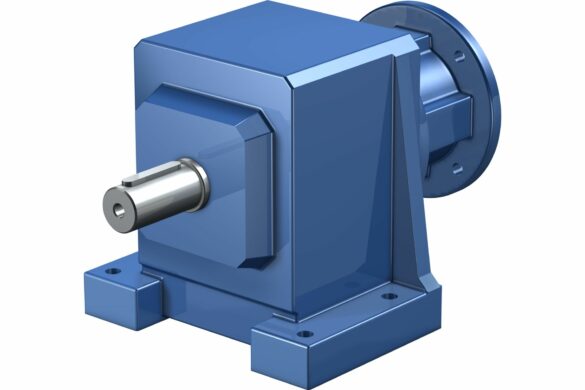

The stylish classic unit for the long haul: Power transmission helical gear units.
Are you looking for a compact helical gear unit for industrial use? Made from one mold? Featuring high torsional stiffness? And high efficiency?
We recommend our power transmission helical gear units!
STOBER helical gear units have an impressive design from a single mold, without any parting lines that can weaken them. This monoblock design is an absolute advantage in terms of torsional stiffness and leak-proofness!
The housing of the gear units is made of gray cast iron. And the classic, proven mechanics allow these gear units to operate reliably even in harsh environments and in continuous operation.
Another characteristic feature of helical gear units are the coaxial axes. The helical gearing and resulting exceptionally smooth operation are also remarkable. It’s perfect for continuous operation.
Using a short motor adapter, the helical gear units can be attached to standard or stainless steel motors quickly and easily in accordance with IEC or NEMA-C.
|
Power density: |
|||||
|
Price category: |
€ | € | € | € | € |
- Total ratio: 2 – 276
- Nominal torque: 21 – 6000 Nm
- Backlash: 10 – 20 arcmin
- Efficiency: 96 – 97%
Find your right fit!
- Shaft: Solid shaft with or without key (without for sizes C0 – C5, on request starting at C6)
- Housing:
- Pitch circle diameter with optional side fastening
- Round or square flange
- Backlash: Standard or class II
- Mounting position: Any
- Lubricants and maintenance:
- Mineral lubricant CLP ISO VG 220 or synthetic lubricant CLP HC ISO VG 220
- Lubricated for life and maintenance-free
- Motor adapter:
- Round motor adapter (MR) with curved tooth coupling
- Square motor adapter (MQ) with plug-in coupling (jaw coupling)
- Recommended motors: Can be attached to all standard steel or stainless steel motors in acc. with IEC or NEMA-C
